Description

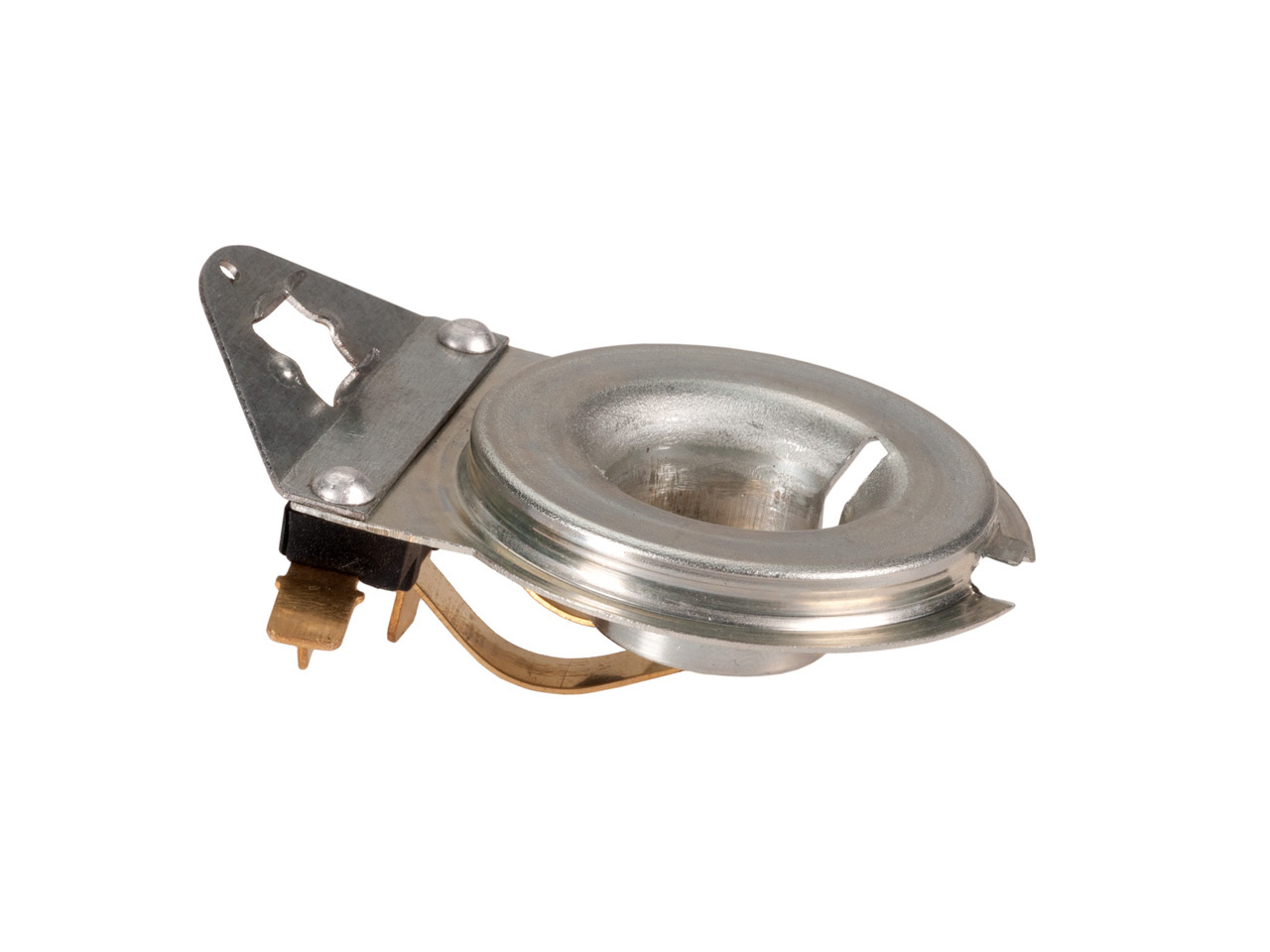

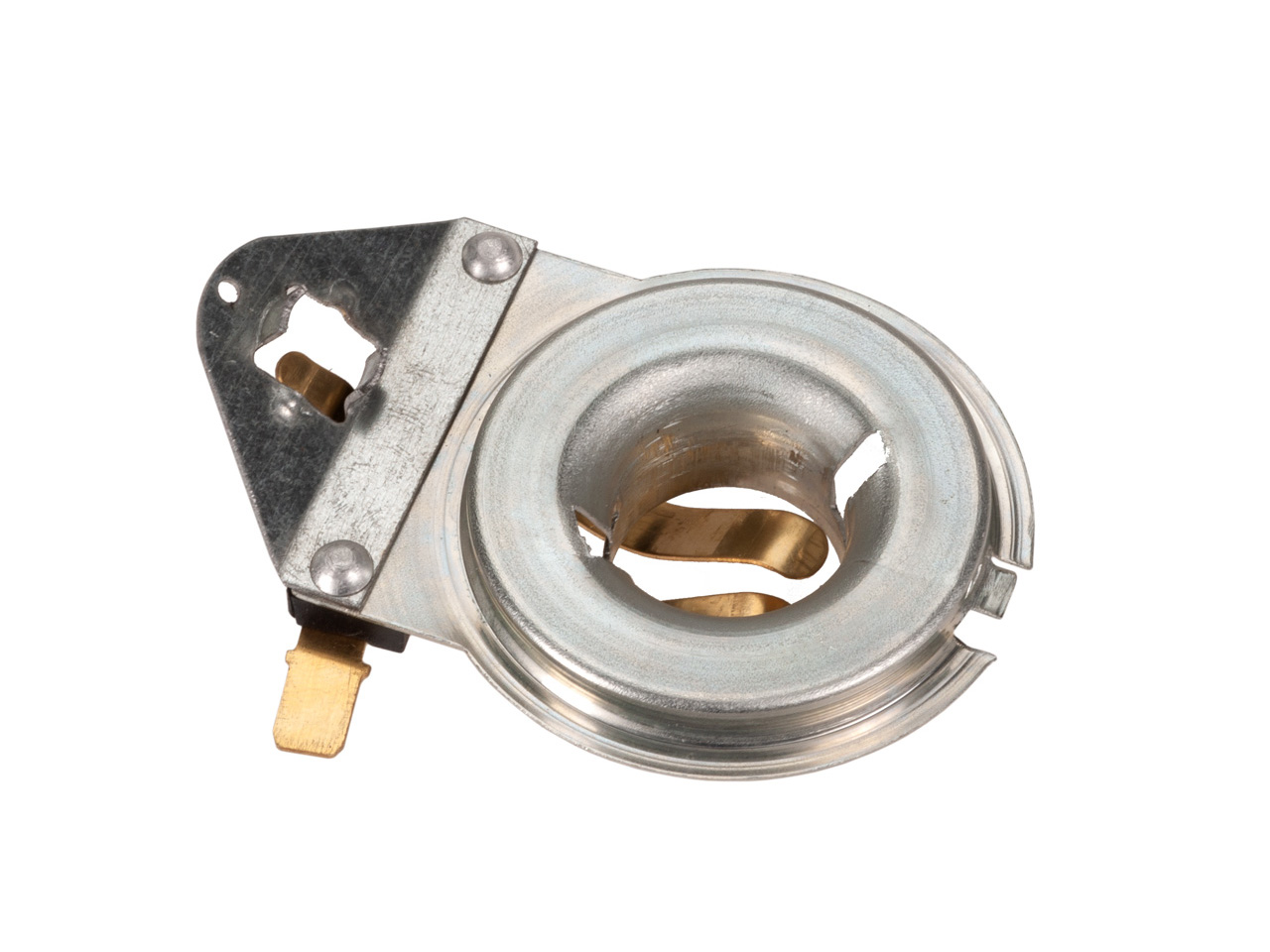

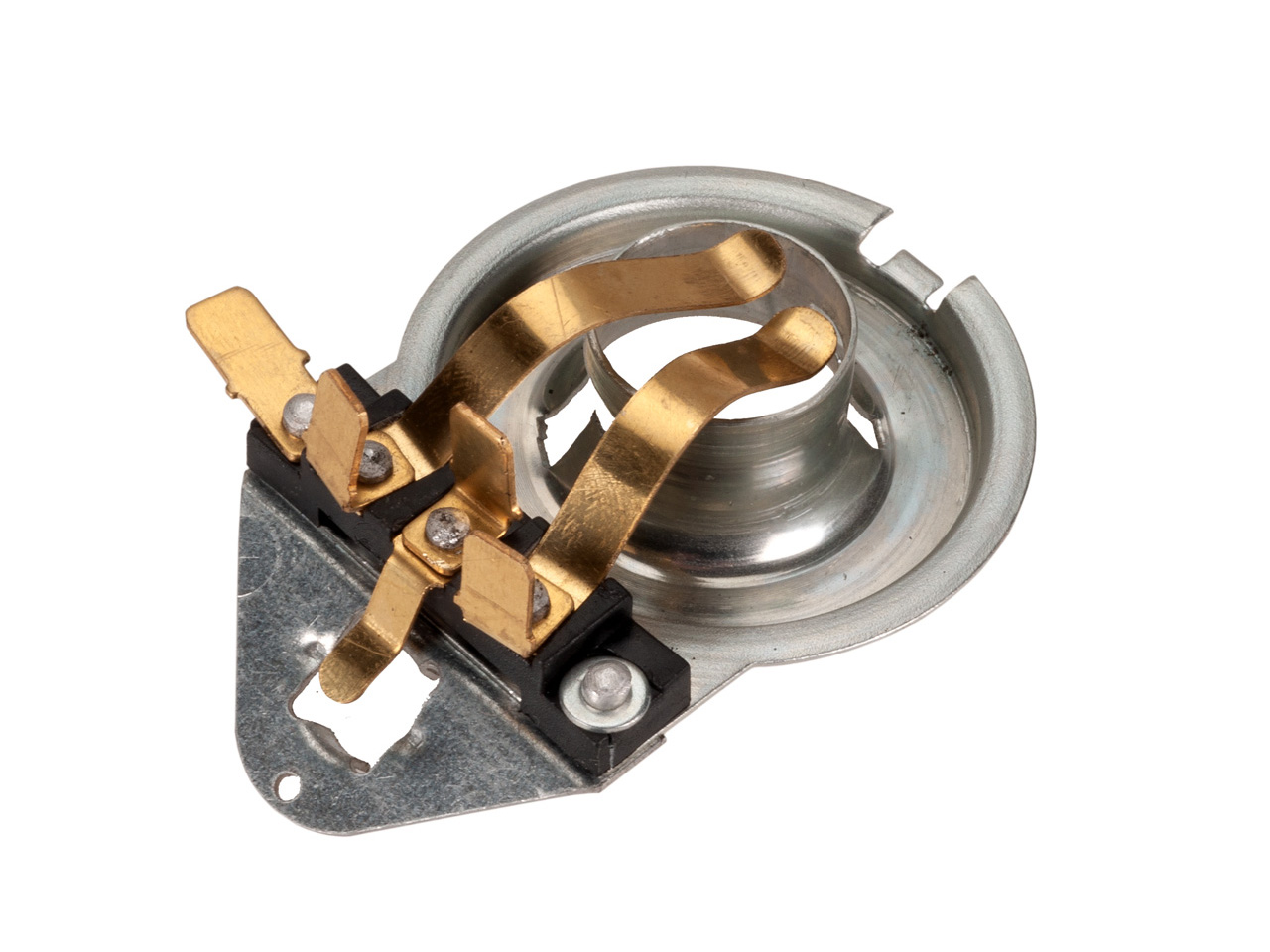

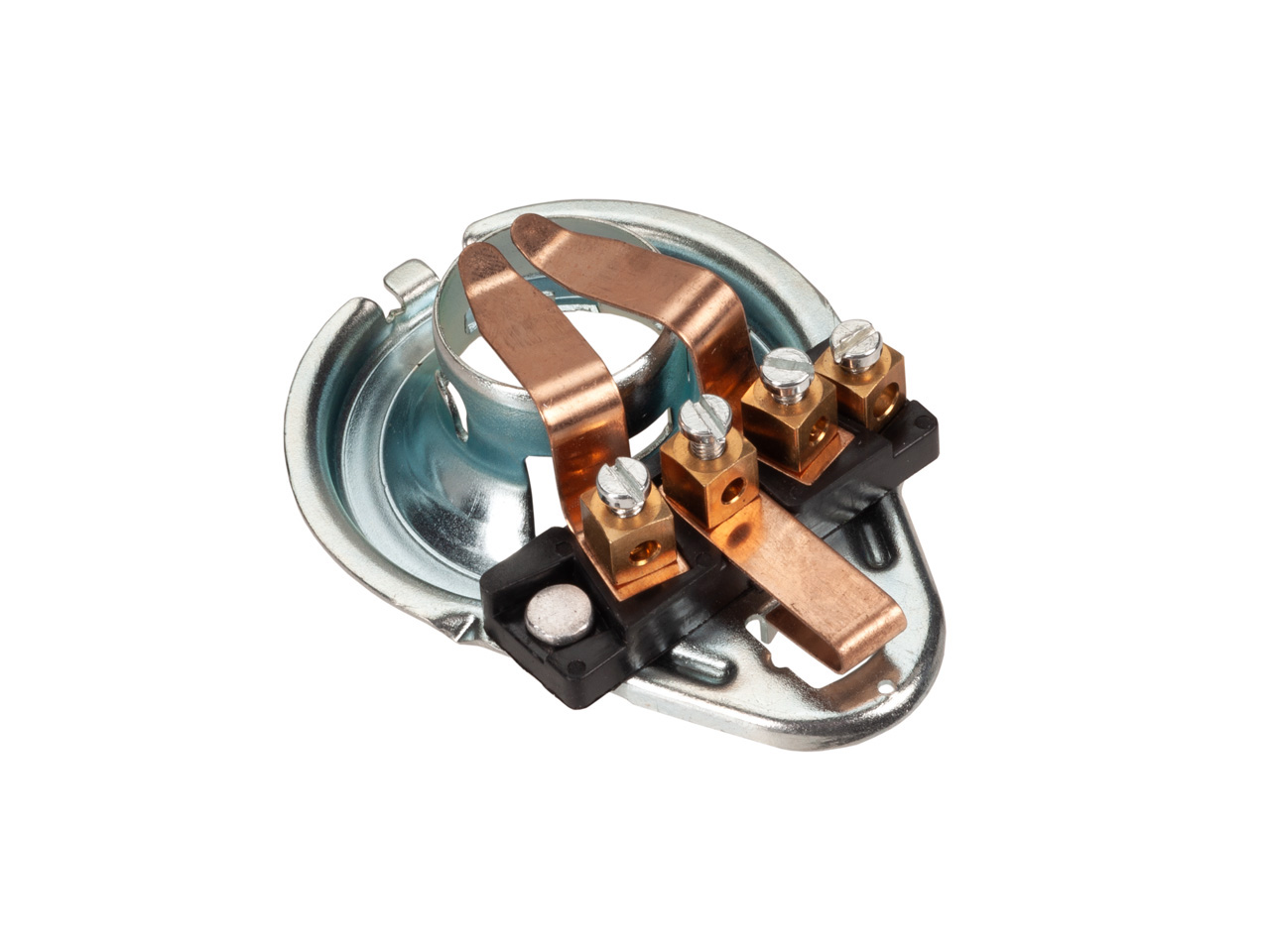

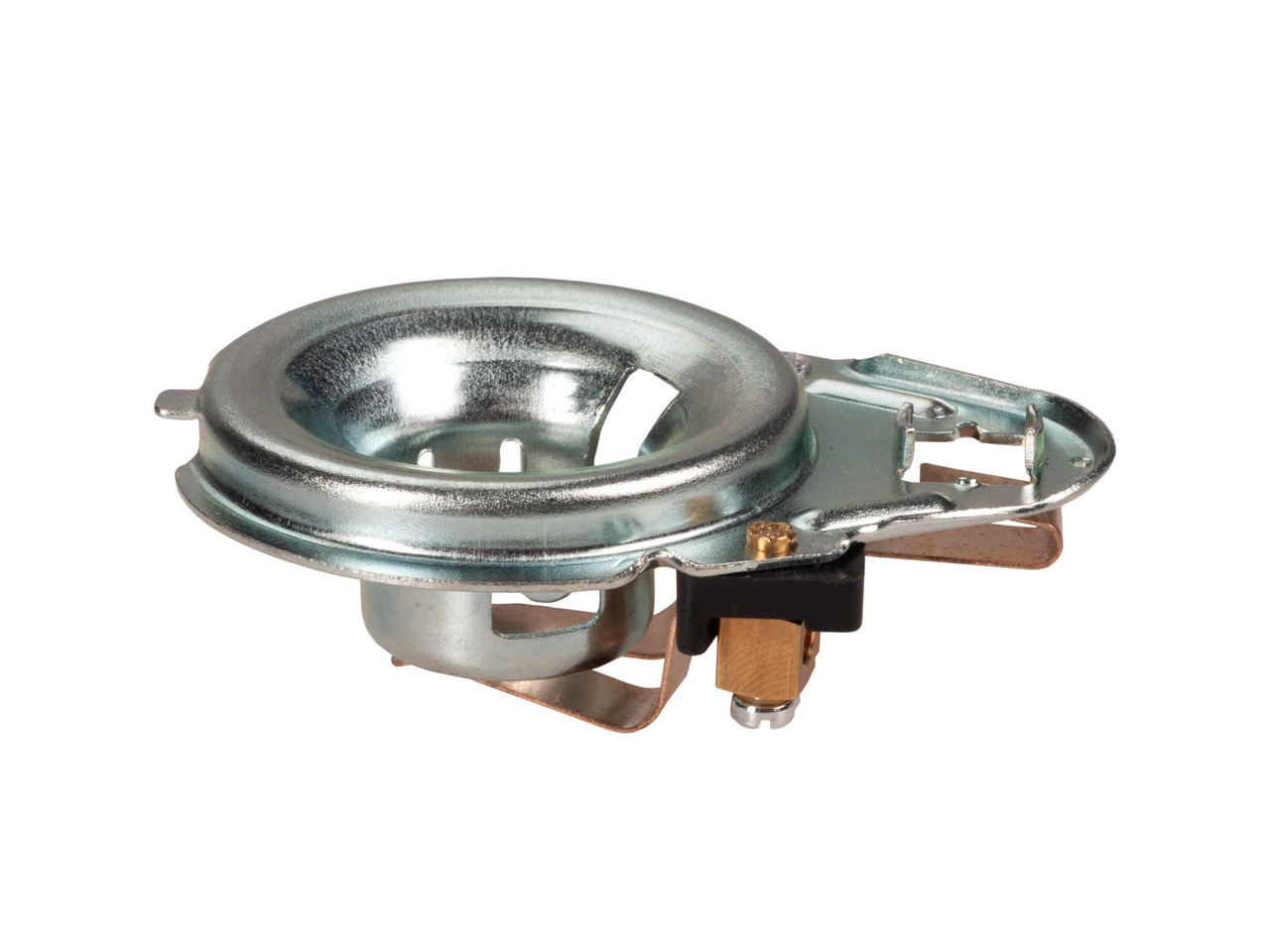

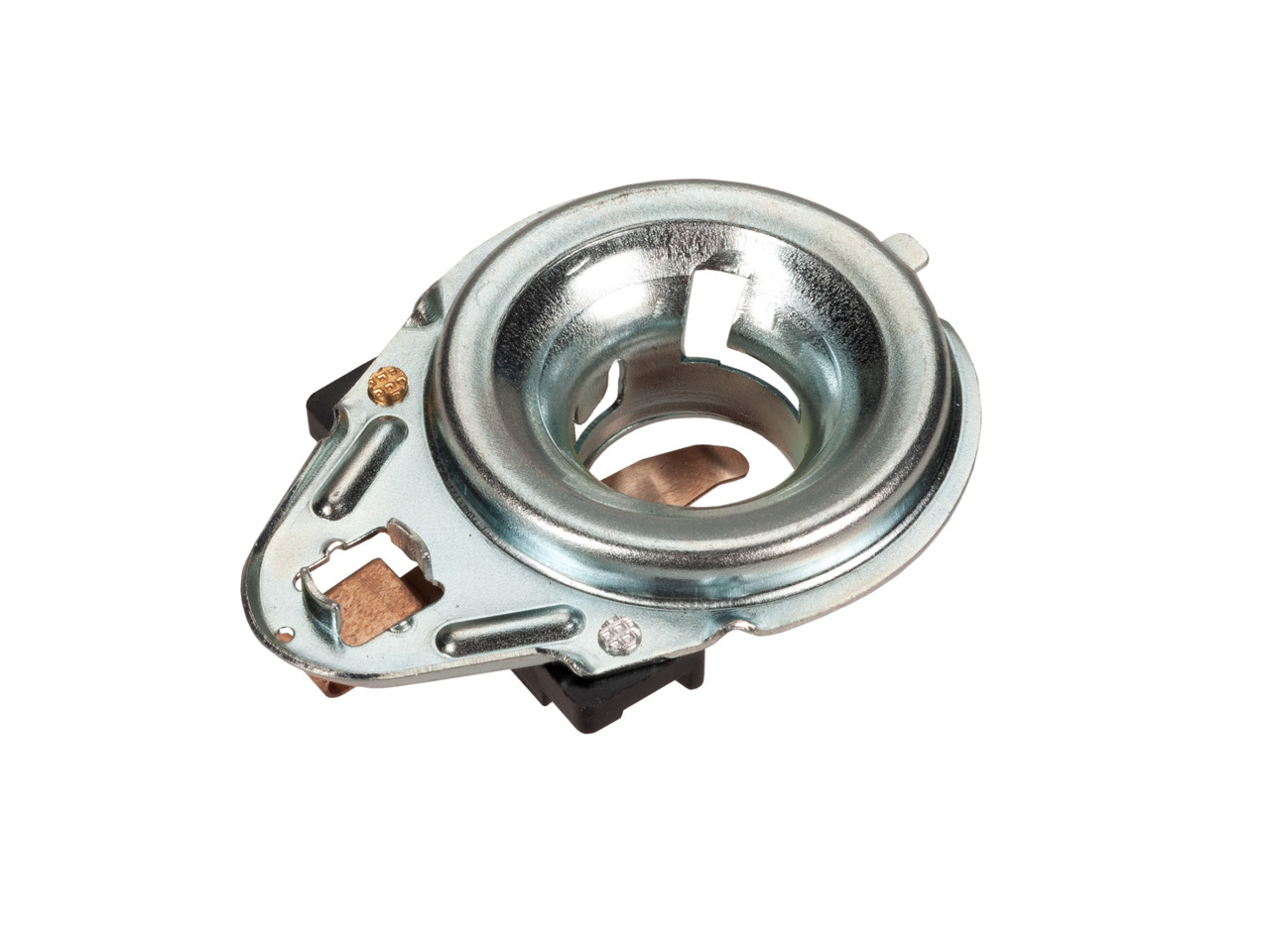

Headlight Bulb Holder with Parking Light Socket
This headlight bulb holder is a high-quality reproduction of the original unit used in Hella-style headlamps fitted to many German wartime vehicles and motorcycles.
Manufactured exactly like the original, it accepts a Ba20d Bilux bulb for the main headlight and incorporates a separate Ba9s socket for the parking light. The holder features four electrical terminals and is designed to fit reflectors equipped with a dedicated parking light opening.
Installation is identical to the original design. The holder hooks into the reflector at the upper slot and is secured at the bottom with a retaining spring.
Manufactured from durable materials with precise dimensions, this bulb holder is the ideal replacement for damaged or missing originals and ensures reliable operation of the headlight assembly.
Please note: This bulb holder can only be used with reflectors that have a separate opening for the parking light.
Approximate dimensions:
– Inner diameter (bulb holder): 20 mm
– Outer diameter: 52 mm
– Reflector opening: 45 mm
– Overall height: 25 mm
– Overall length: 70 mm
VW PART NR:
111941159A
11942159b
10942159
942159a
